Ball Catching Franka Arm with YOLO

View Project on GitHub

Overview

This project focused on enabling a Franka Emika Panda robot arm to autonomously catch a thrown ball in real time. Using stereo vision and learned object detection, the system tracks a ball in flight, predicts its trajectory, and commands the robot to intercept the ball at a predefined catching plane.

The project was completed as a team-based final project for ME 450 / ME 495, with an emphasis on real-time perception, motion planning, and system integration in ROS 2.

Team Members

  • Anunth Ramaswami
  • Kasina Jyothi Swaroop
  • Kyle Thompson
  • Zixin Ye

Tracking demo

System Architecture

The system consists of three tightly coupled pipelines:

  1. Perception – Ball detection and 3D localization
  2. Prediction – Trajectory estimation and interception point computation
  3. Control – Cartesian motion planning and execution using MoveIt 2

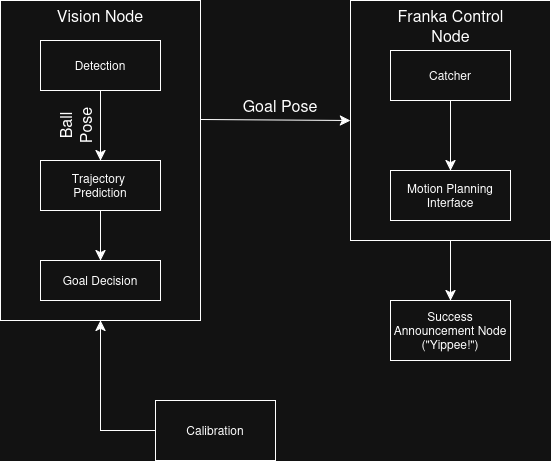

System Architecture

Perception Pipeline

  • An Intel RealSense camera provides synchronized RGB-D data at 60 FPS.
  • A YOLO-based object detector identifies the ball in the RGB stream.
  • Depth data is fused with image detections to compute the ball’s 3D position.
  • Ball poses are published as ROS 2 transforms for downstream processing.

To support accurate hand–eye calibration, an ArUco marker-based calibration pipeline was implemented using easy_handeye2.

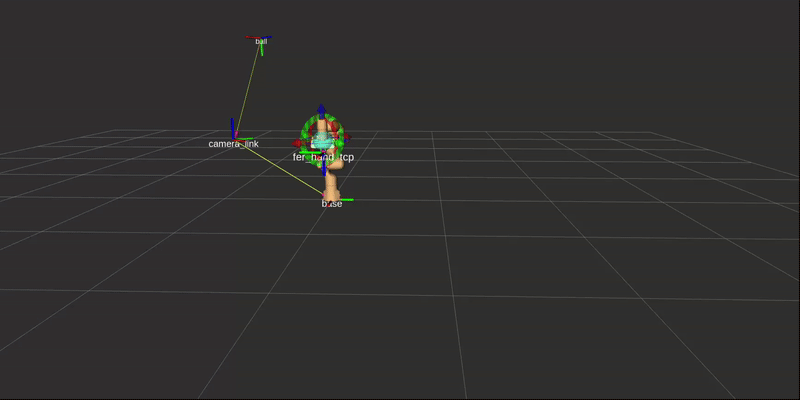

RVIZ Display:

RVIZ display

Trajectory Prediction

Once the ball is detected across multiple frames:

  • A trajectory prediction node estimates the ball’s flight path.
  • The intersection point between the predicted trajectory and a predefined catching plane is computed.
  • The predicted intercept pose is published in real time for motion planning.

The prediction system must balance accuracy vs latency, as the ball is typically in flight for only ~1 second.

Robot Motion & Control

  • Motion planning is handled using MoveIt 2 with Cartesian path planning.
  • The robot transitions between:
    • A ready pose
    • A hoop pickup pose
    • A dynamically computed catching pose
  • ROS 2 services control system state, including:
    • Picking up the catching hoop
    • Arming the robot for a throw
    • Resetting predictions between throws

Performance & Limitations

Timing Constraints

  • Ball flight time: ~1 second
  • Robot motion time (max scaling): ~0.56 seconds
  • Prediction requires sufficient samples before committing to a motion plan

This narrow timing window limits the range of successful catches.

Camera Constraints

  • The RealSense depth range restricted the allowable throwing distance.
  • Reduced flight time negatively impacted trajectory prediction accuracy.

Improvements Explored

Plan Caching

Motion plans were precomputed and cached to reduce planning latency.
Testing showed planning time was already minimal (~14 ms), with execution speed remaining the primary bottleneck.

ZED 2i Camera

A ZED 2i camera was evaluated for improved depth range and frame rate.
Although the hardware showed promise, a custom ROS 2 wrapper resulted in dropped depth frames, leading to unreliable detections during prediction.

Demo

A live demonstration showing real-time detection, trajectory prediction, and interception:

Watch the Demo Video

My Contributions

  • Designed and implemented the trajectory prediction pipeline
  • Integrated YOLO-based perception with ROS 2 transform broadcasting
  • Assisted with MoveIt 2 Cartesian motion planning
  • Debugged RealSense depth synchronization and latency issues
  • Contributed to full system integration and live testing

Technologies Used

  • ROS 2
  • MoveIt 2
  • Intel RealSense
  • YOLO (Ultralytics)
  • OpenCV
  • Python
  • Franka Emika Panda Robot
